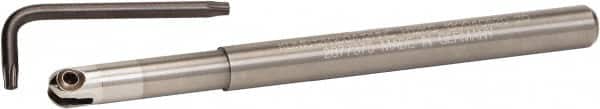

Kennametal - 8mm Cut Diam, 4mm Max Depth of Cut, 8mm Shank Diam, 100mm OAL, Indexable Ball Nose End Mill - 25mm Head Length, Straight Shank, KDMB Toolholder, KDM 08.. Insert
Item #: 58460973
Brand: Kennametal
Model #: 1918704
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 8.00 |
| Cutting Diameter (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDM 08.. |
| Toolholder Style | KDMB |
| Series | KDMB |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Neck Diameter (Decimal Inch) | 0.2756 |
| Maximum RPM | 40000 |
