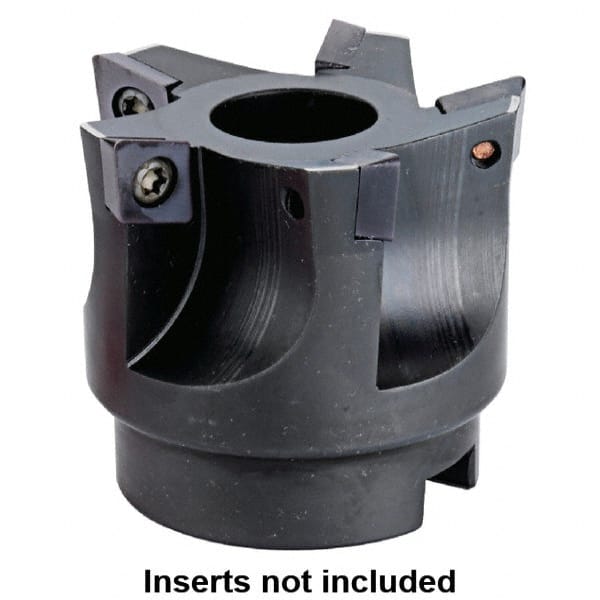

Kennametal - 52mm Cut Diam, 22mm Arbor Hole, 8mm Max Depth of Cut, 95° Indexable Chamfer & Angle Face Mill - 5 Inserts, XD.X 10T3 Insert, 5 Flutes, Series KMS
Item #: 58484809
Brand: Kennametal
Model #: 1888194
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 52.00 |
| Cutting Diameter (Decimal Inch) | 2.0472 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 95 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | XD.X 10T3 |
| Series | KMS |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3149 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | KMS |
| Number of Flutes | 5 |
| Hub Diameter (Decimal Inch) | 1.6535 |
| Hub Diameter (mm) | 42.00 |
| Maximum Body Diameter (Decimal Inch) | 1.9646 |
| Complete Insert Compatibility | XD.X 10T3 |
