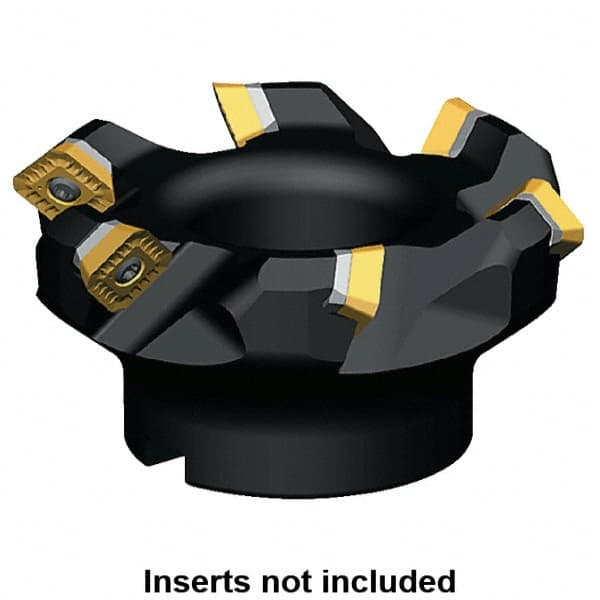

Kennametal - 93.76mm Cut Diam, 27mm Arbor Hole, 6.61mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 5 Inserts, SECW 1404... Insert, 5 Flutes, Series KSSM
Item #: 58497785
Brand: Kennametal
Model #: 1926894
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 93.76 |
| Cutting Diameter (Decimal Inch) | 3.6913 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SECW 1404... |
| Series | KSSM |
| Maximum Depth of Cut (mm) | 6.61 |
| Maximum Depth of Cut (Decimal Inch) | 0.2602 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | KSSM |
| Number of Flutes | 5 |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Hub Diameter (mm) | 60.00 |
| Maximum Body Diameter (Decimal Inch) | 3.6075 |
| Maximum RPM | 18000 |
| Pitch | Coarse |
| Complete Insert Compatibility | SECW 1404AEENLN |
