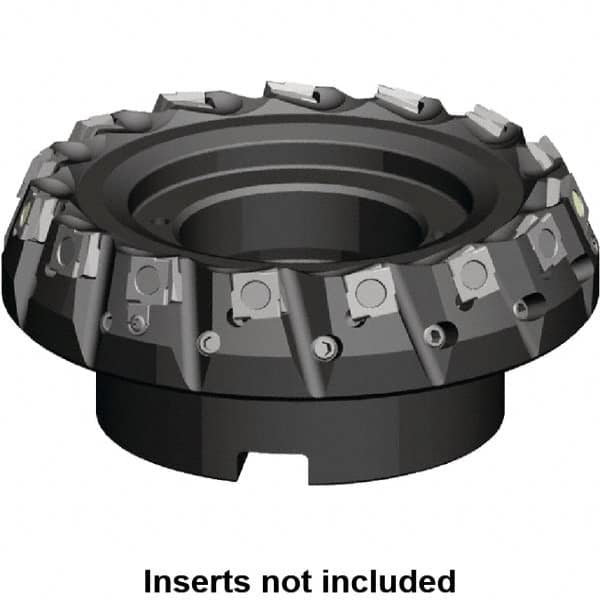

Kennametal - 80mm Cut Diam, 27mm Arbor Hole, 6.5mm Max Depth of Cut, 20° Indexable Chamfer & Angle Face Mill - 7 Inserts, SPHX 15T6... Insert, 7 Flutes, Series Fix-Perfect
Item #: 58497900
Brand: Kennametal
Model #: 1802594
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 20 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SPHX 15T6... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Clamp |
| Cutter Style | WFP |
| Number of Flutes | 7 |
| Hub Diameter (mm) | 64.00 |
| Maximum RPM | 4000 |
| Pitch | Fine |
| Complete Insert Compatibility | SPHX 15T6ZC.R |
