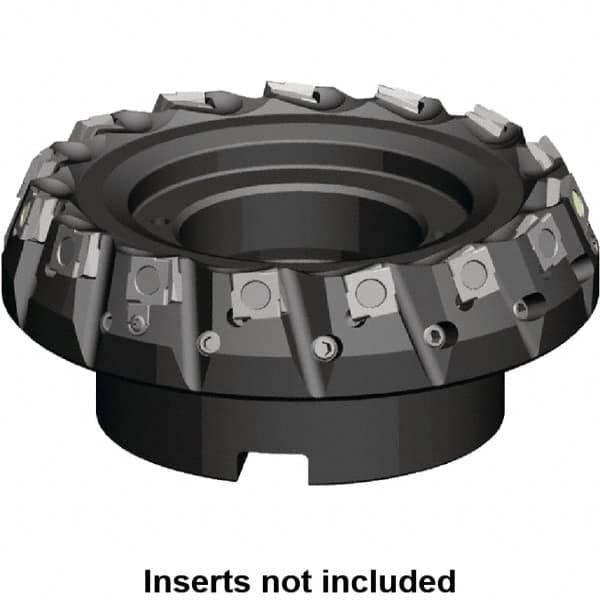

Kennametal - 100mm Cut Diam, 32mm Arbor Hole, 6.5mm Max Depth of Cut, 20° Indexable Chamfer & Angle Face Mill - 9 Inserts, SPHX 15T6... Insert, 9 Flutes, Series Fix-Perfect
Item #: 58497942
Brand: Kennametal
Model #: 1777661
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 20 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SPHX 15T6... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Clamp |
| Cutter Style | WFP |
| Number of Flutes | 9 |
| Hub Diameter (mm) | 84.00 |
| Maximum RPM | 3200 |
| Pitch | Fine |
| Complete Insert Compatibility | SPHX 15T6ZC.R |
