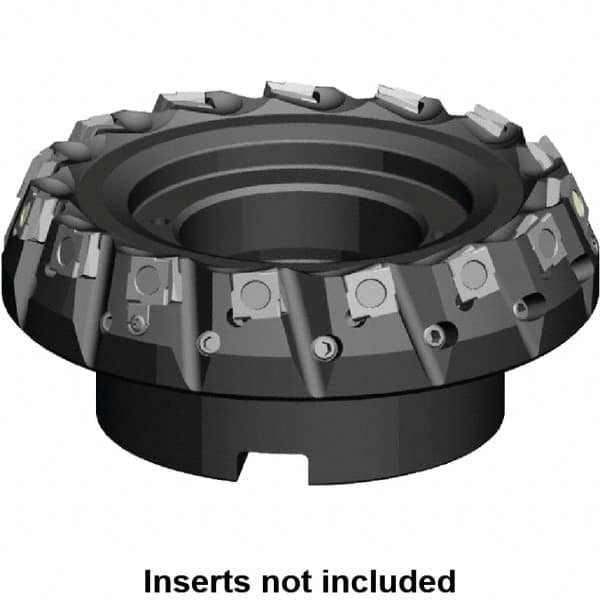

Kennametal - 63mm Cut Diam, 22mm Arbor Hole, 5.9mm Max Depth of Cut, 20° Indexable Chamfer & Angle Face Mill - 8 Inserts, SPHX 1205... Insert, 8 Flutes, Series Fix-Perfect
Item #: 58498031
Brand: Kennametal
Model #: 1501667
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 20 |
| Overall Height (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | SPHX 1205... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 5.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.2320 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Clamp |
| Cutter Style | CFP |
| Number of Flutes | 8 |
| Hub Diameter (mm) | 54.00 |
| Maximum RPM | 5000 |
| Pitch | Fine |
| Complete Insert Compatibility | SPHX 1205ZC.R |
