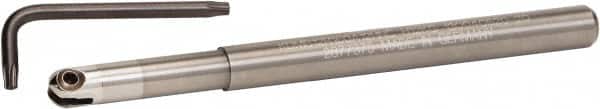

Kennametal - 3/8" Cut Diam, 3/8" Max Depth of Cut, 3/8" Shank Diam, 120.14mm OAL, Indexable Ball Nose End Mill - 33.26mm Head Length, Straight Shank, KDMB Toolholder, KDMB 0750.. Insert
Item #: 58499161
Brand: Kennametal
Model #: 2879403
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 9.53 |
| Cutting Diameter (Inch) | 3/8 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (mm) | 9.53 |
| Maximum Depth of Cut (Inch) | 3/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDMB 0750.. |
| Toolholder Style | KDMB |
| Series | KDMB |
| Overall Length (mm) | 120.14 |
| Overall Length (Decimal Inch) | 4.7300 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (mm) | 33.26 |
| Head Length (Decimal Inch) | 1.3096 |
| Neck Diameter (Decimal Inch) | 0.3500 |
| Maximum RPM | 30000 |
