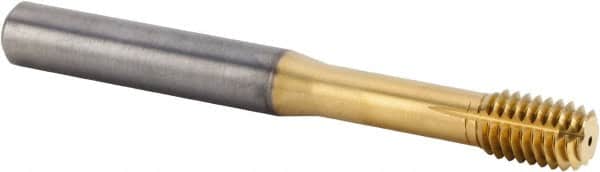

Kennametal - M10x1.50 Metric Coarse 6HX Modified Bottoming Thread Forming Tap - Solid Carbide, TiAlN Finish, 90mm OAL, 12mm Thread Length, Right Hand Thread, Series T391
Item #: 58506767
Brand: Kennametal
Model #: 3483124
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading to the bottom of blind holes and have 2 to 2-1/2 threads.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely-heat resistant and commonly used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M10x1.50 |
| Class of Fit | 6HX |
| Chamfer | Modified Bottoming |
| Finish/Coating | TiAlN |
| Material | Solid Carbide |
| Overall Length (Decimal Inch) | 3.5433 |
| Overall Length (mm) | 90.00 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 0.4724 |
| Thread Length (mm) | 12.00 |
| Series/List | T391 |
| Neck Length (Decimal Inch) | 1.1024 |
| Neck Length (mm) | 28 |
| Tapping Depth (Decimal Inch) | 1.5748 |
| Tapping Depth (mm) | 40 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Shank Length (Decimal Inch) | 1.74 |
| Shank Length (mm) | 44 |
| Material Application | Steel |
