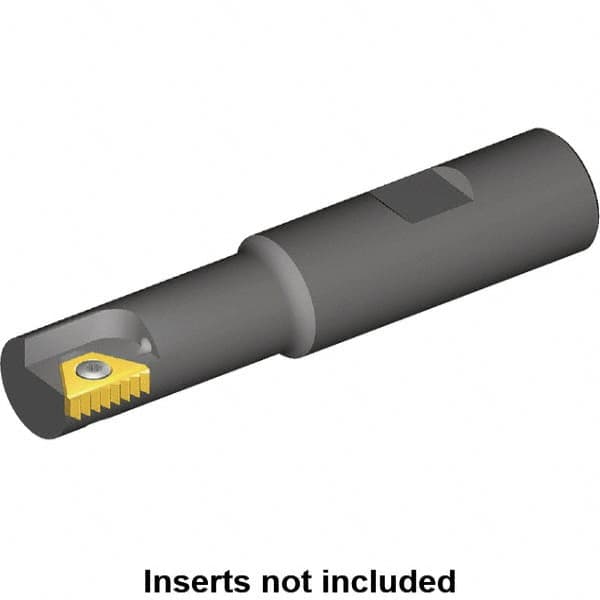

Kennametal - 9mm Cut Diam, 17mm Max Hole Depth, 20mm Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 10, 10.4mm Insert Size, 1 Insert, Toolholder Style TMS, 84mm OAL
Item #: 58508540
Brand: Kennametal
Model #: 1191395
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 9.00 |
| Cutting Diameter (Decimal Inch) | 0.3543 |
| Maximum Hole Depth (mm) | 17.00 |
| Maximum Hole Depth (Decimal Inch) | 0.6693 |
| Insert Style | STN 10 |
| Insert Size (mm) | 10.40 |
| Insert Size (Decimal Inch) | 0.4094 |
| Toolholder Style | TMS |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 84.00 |
| Overall Length (Decimal Inch) | 3.3071 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (mm) | 6.80 |
| Neck Diameter (Decimal Inch) | 0.2677 |
| Insert Inscribed Circle (Inch) | 15/64 |
