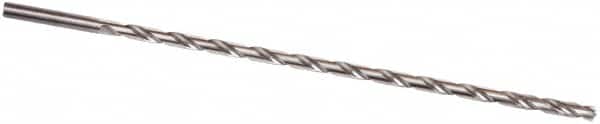

Extra Length Drill Bit: 0.2559″ Dia, 135 °, Solid Carbide Bright Finish, 5.9843″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B272-HPS
Item #: 58516212
Brand: Kennametal
Model #: 3867814
Product Specifications
| Drill Bit Size (mm) | 6.50 |
| Overall Length (mm) | 197.00 |
| Flute Length (mm) | 152.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Bright |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B272-HPS |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | -0.0009 to 0.0000 in; -0.022 to 0.000 mm |
| Number Of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.2559 |
| Drill Point Length (mm) | 1.20 |
| Drill Point Length (Decimal Inch) | 0.0472 |
| Shank Diameter (Decimal Inch) | 0.2756 |
| Shank Diameter (mm) | 7.00 |
| Shank Length (Decimal Inch) | 1.4961 |
| Shank Length (mm) | 38.00 |
| Flute Length (Decimal Inch) | 5.9843 |
| Flute By Diameter Ratio | 21xD |
| Maximum Drilling Depth (Decimal Inch) | 5.3937 |
| Maximum Drilling Depth (mm) | 137.00 |
