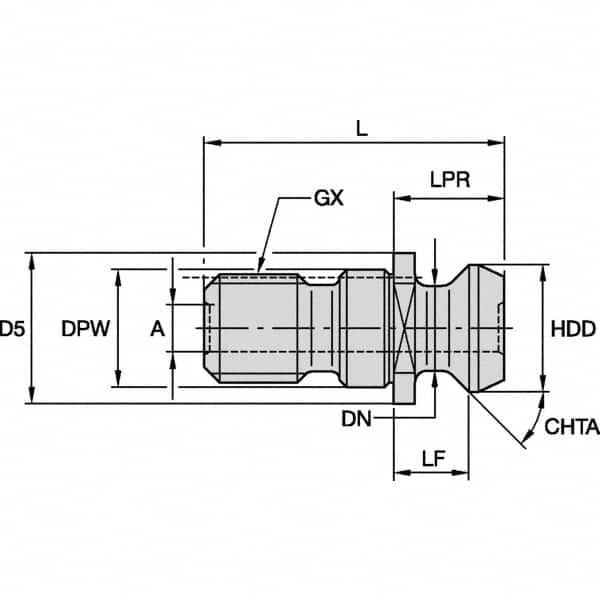

Kennametal - B Style, CAT50 Taper, M24x3 Thread, 45° Angle Radius, Standard Retention Knob - 2.5787" OAL, 1.1398" Knob Diam, 1" from Knob to Flange, 0.9837" Pilot Diam, 0.4606" Coolant Hole, Through Coolant
Item #: 58518598
Brand: Kennametal
Model #: 1192431
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | CAT50 |
| Thread Size | M24x3 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 1.1398 |
| Through Coolant | Yes |
| Style | B |
| Neck Diameter (Decimal Inch) | 0.7657 |
| Pilot Diameter (Decimal Inch) | 0.9837 |
| Overall Length (Decimal Inch) | 2.5787 |
| Knob to Flange Length (Decimal Inch) | 1.0000 |
| Coolant Hole Diameter (Decimal Inch) | 0.4606 |
