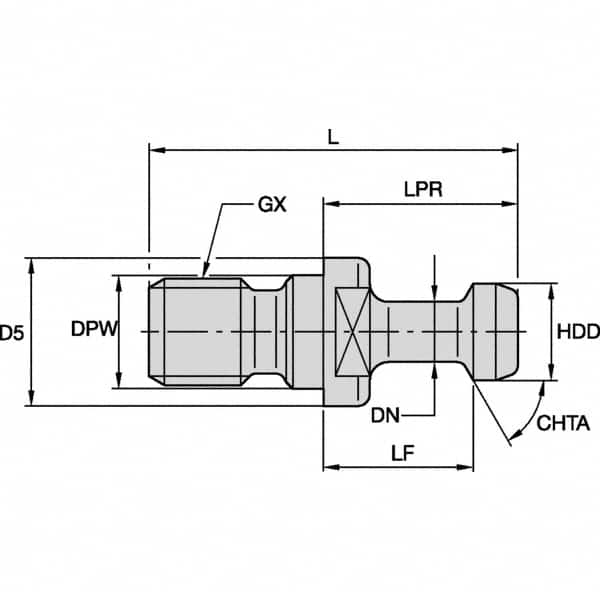

Kennametal - BT50 Taper, M24x3 Thread, 45° Angle Radius, Standard Retention Knob - 3.3465" OAL, 0.9035" Knob Diam, 1.7697" from Knob to Flange, 0.9838" Pilot Diam
Item #: 58518630
Brand: Kennametal
Model #: 1192426
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | BT50 |
| Thread Size | M24x3 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.9035 |
| Through Coolant | No |
| Neck Diameter (Decimal Inch) | 0.6673 |
| Pilot Diameter (Decimal Inch) | 0.9838 |
| Overall Length (Decimal Inch) | 3.3465 |
| Knob to Flange Length (Decimal Inch) | 1.7697 |
