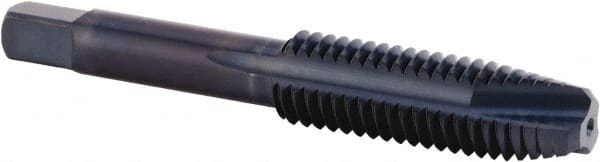

Kennametal - 1/2-13 UNC, 3 Flute, Nitride/Oxide Finish, High Speed Steel Spiral Point Tap - Bottoming Chamfer, Right Hand Thread, 85.85mm OAL, 42.06mm Thread Length, 9.32mm Shank Diam, 3B Class of Fit, Series KHSST
Item #: 58520990
Brand: Kennametal
Model #: 4132077
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Nitride/oxide is harder than oxide and is used to prevent galling, welding and loading. It is commonly used on low carbon steels, stainless steels and nonferrous metals.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/2-13 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Finish/Coating | Nitride/Oxide |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.3800 |
| Overall Length (mm) | 85.85 |
| Oversize | No |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.6560 |
| Thread Length (mm) | 42.06 |
| Series/List | KHSST |
| Style | Spiral Point |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Shank Diameter (mm) | 9.32 |
| Material Application | Cast Iron; Non-Ferrous Materials; Stainless Steel; Steel |
