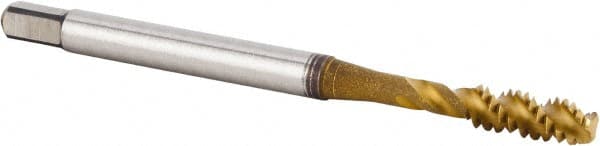

Kennametal - #8-32 UNC 3 Flute 3BX Modified Bottoming Spiral Flute Tap - Powdered Metal, TiCN/TiN Finish, 53.85mm OAL, Right Hand Flute, Right Hand Thread, Series T630
Item #: 58522962
Brand: Kennametal
Model #: 4116839
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #8-32 |
| Chamfer | Modified Bottoming |
| Class of Fit | 3BX |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | TiCN/TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.1200 |
| Overall Length (mm) | 53.85 |
| Helix Angle | 45 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.3100 |
| Thread Length (mm) | 7.87 |
| Flute Type | Fast Spiral |
| Series/List | T630 |
| Neck Length (Decimal Inch) | 0.4500 |
| Tapping Depth (Decimal Inch) | 0.7600 |
| Tapping Depth (mm) | 19.30 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Shank Diameter (mm) | 4.27 |
| Shank Length (Decimal Inch) | 1.1929 |
| Shank Length (mm) | 30 |
| Material Application | Cast Iron; Steel |
