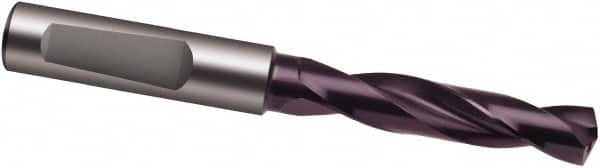

Guhring - 5.5mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - FIREX Finish, Right Hand Cut, 28mm Flute Length, 66mm OAL, SU Point, Whistle Notch Shank, Through Coolant
Item #: 58524273
Brand: Guhring
Model #: 9056100055000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
FIREX is a multi-layer coating that combines the characteristics of universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. FIREX is a proprietary coating exclusive to Guhring, Inc.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2165 |
| Drill Bit Size (mm) | 5.50 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | FIREX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 28.00 |
| Overall Length (mm) | 66.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | SU Point |
| Shank Diameter (mm) | 6.00 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Drill Bit Grade | High Performance |
| Material Grade | K40 |
| Series/List | 5610 |
