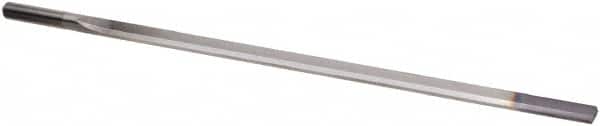

Die Drill Bit: 0.0984″ Dia, Solid Carbide Coated, Series 5647
Item #: 58525148
Brand: Guhring
Model #: 9056470025000
Product Specifications
| DrillType | Straight-Flute; Single Flute Gun |
| Drill Size (Decimal) | 0.0984; 2.5 mm; 0.0984 in |
| Drill Size (Metric) | 2.50 |
| Drill/Shank Material | Solid Carbide |
| Flute Length (Metric) | 155.00 |
| Flute Length (Inch) | 155.0 mm |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Kidney |
| Shank Diameter (Inch) | 4.0 mm |
| Shank Diameter (Metric) | 4.00 |
| Shank Diameter (Decimal) | 4.0 mm |
| Shank Length (Metric) | 28 mm; 28.00 |
| Point Type | Special |
| OverallLength (Decimal) | 185.0 mm |
| Overall Length (Metric) | 185.00 |
| Finish/Coating | nano-A (Tip) |
| Material Grade | K40 |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance (Metric) | h5 |
| Web Thinning | Web-Thinned |
| Flute Length x Diameter Ratio | 50xD |
| Series/List | 5647 |
