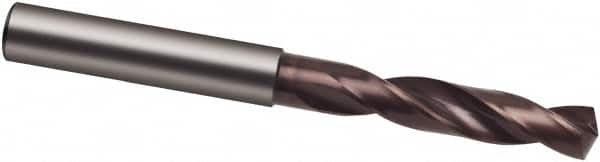

Guhring - 13.5mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 58528092
Brand: Guhring
Model #: 9085240135000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Drill Bit Size (mm) | 13.50 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | nano-Si? |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 60.00 |
| Overall Length (mm) | 107.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | HF Point |
| Shank Diameter (mm) | 14.00 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Drill Bit Grade | High Performance |
| Material Grade | K40 |
| Series/List | 8524 |
