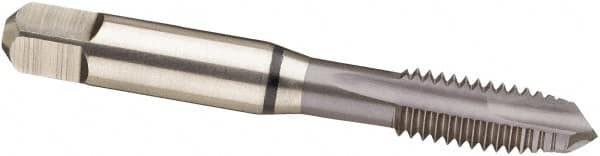

Guhring - M12x1.75 Metric, 3 Flute, MolyGlide Finish, Cobalt Spiral Point Tap - Plug Chamfer, Right Hand Thread, 3.381" OAL, 6H Class of Fit, Series 3966
Item #: 58541574
Brand: Guhring
Model #: 9039660120000
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
MolyGlide is a non-stick, low friction coating that has good sliding properties. It is commonly used for dry applications or where lubrication is minimal. MolyGlide is a proprietary coating exclusive to Guhring, Inc.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M12x1.75 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D5/D6 |
| Finish/Coating | MolyGlide |
| Material | Cobalt |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.3810 |
| Oversize | No |
| Thread Standard | Metric |
| Series/List | 3966 |
