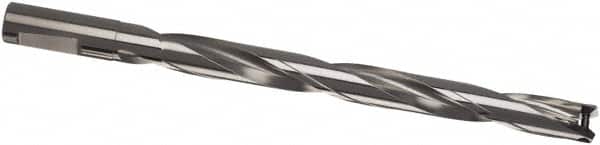

Guhring - 25 to 25.49mm Diam, 10xD, 254.8mm Max Depth, 1" Shank Diam, 352mm Flute, 352mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 245 Seat Size, 10xD HT 800 WP Toolholder, Series 4110
Item #: 58568890
Brand: Guhring
Model #: 9041100245050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4110 |
| Minimum Drill Diameter (mm) | 25.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 25.49 |
| Maximum Drill Diameter (Decimal Inch) | 1.0035 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (mm) | 254.80 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 245 |
| Toolholder Style | 10xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 352.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 352.00 |
| Toolholder Material | High Speed Steel |
