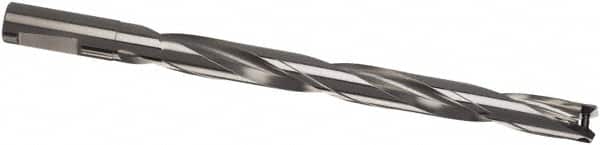

Guhring - 19.5 to 19.99mm Diam, 10xD, 203.7mm Max Depth, 20mm Shank Diam, 286mm Flute, 286mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 195 Seat Size, 10xD HT 800 WP Toolholder, Series 4110
Item #: 58569054
Brand: Guhring
Model #: 9041100195000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4110 |
| Minimum Drill Diameter (mm) | 19.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.7677 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (mm) | 203.70 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 195 |
| Toolholder Style | 10xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 286.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 286.00 |
| Toolholder Material | High Speed Steel |
