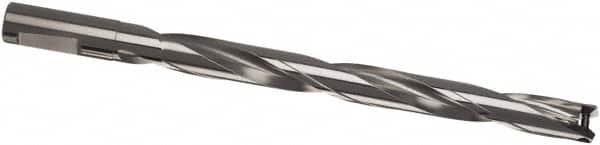

Guhring - 12 to 12.49mm Diam, 10xD, 122.1mm Max Depth, 1/2" Shank Diam, 187mm Flute, 187mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 115 Seat Size, 10xD HT 800 WP Toolholder, Series 4110
Item #: 58569278
Brand: Guhring
Model #: 9041100115050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4110 |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (mm) | 122.10 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 115 |
| Toolholder Style | 10xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 187.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 187.00 |
| Toolholder Material | High Speed Steel |
