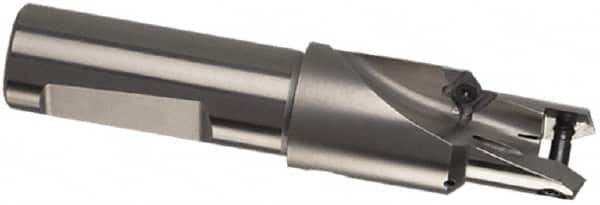

Guhring - 22 to 22.99mm Diam, 1xD, 23.4mm Max Depth, 3/4" Shank Diam, 23.4mm Flute, 117mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 200 Seat Size, Pilot HT 800 WP Toolholder, Series 4105
Item #: 58569963
Brand: Guhring
Model #: 9041050200050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4105 |
| Minimum Drill Diameter (mm) | 22.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Diameter (mm) | 22.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9051 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (mm) | 23.40 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 200 |
| Toolholder Style | Pilot HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 23.40 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 117.00 |
| Toolholder Material | High Speed Steel |
