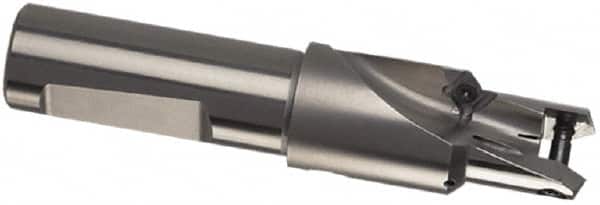

Guhring - 12 to 12.99mm Diam, 1xD, 15.8mm Max Depth, 12mm Shank Diam, 15.8mm Flute, 84mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 120 Seat Size, Pilot HT 800 WP Toolholder, Series 4105
Item #: 58570052
Brand: Guhring
Model #: 9041050120000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4105 |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5114 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (mm) | 15.80 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 120 |
| Toolholder Style | Pilot HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 15.80 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 84.00 |
| Toolholder Material | High Speed Steel |
