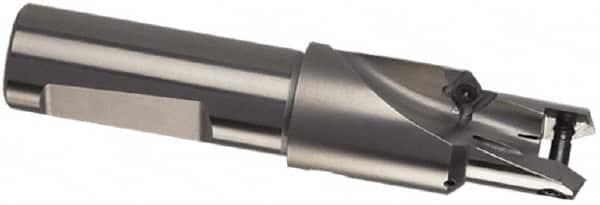

Guhring - 14 to 14.99mm Diam, 1xD, 16.3mm Max Depth, 5/8" Shank Diam, 16.3mm Flute, 86mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 130 Seat Size, Pilot HT 800 WP Toolholder, Series 4105
Item #: 58571282
Brand: Guhring
Model #: 9041050130050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4105 |
| Minimum Drill Diameter (mm) | 14.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (mm) | 14.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5902 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (mm) | 16.30 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 130 |
| Toolholder Style | Pilot HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 16.30 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 86.00 |
| Toolholder Material | High Speed Steel |
