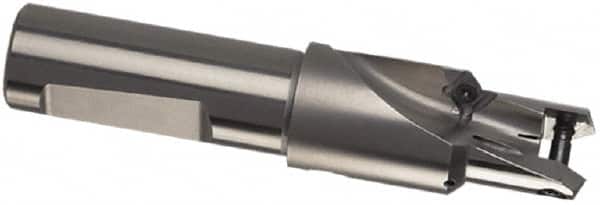

Guhring - 24 to 24.99mm Diam, 1xD, 25.4mm Max Depth, 1" Shank Diam, 25.4mm Flute, 122mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 220 Seat Size, Pilot HT 800 WP Toolholder, Series 4105
Item #: 58571308
Brand: Guhring
Model #: 9041050220050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4105 |
| Minimum Drill Diameter (mm) | 24.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Diameter (mm) | 24.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9839 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (mm) | 25.40 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 220 |
| Toolholder Style | Pilot HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 25.40 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 122.00 |
| Toolholder Material | High Speed Steel |
