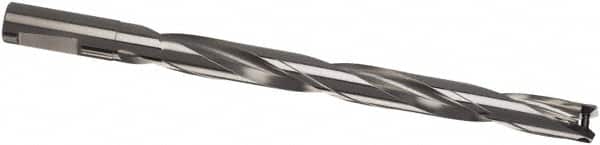

Guhring - 25.5 to 25.99mm Diam, 10xD, 259.9mm Max Depth, 1" Shank Diam, 359mm Flute, 359mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 250 Seat Size, 10xD HT 800 WP Toolholder, Series 4110
Item #: 58571571
Brand: Guhring
Model #: 9041100250050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4110 |
| Minimum Drill Diameter (mm) | 25.50 |
| Minimum Drill Diameter (Decimal Inch) | 1.0039 |
| Maximum Drill Diameter (mm) | 25.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.0232 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (mm) | 259.90 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 250 |
| Toolholder Style | 10xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 359.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 359.00 |
| Toolholder Material | High Speed Steel |
