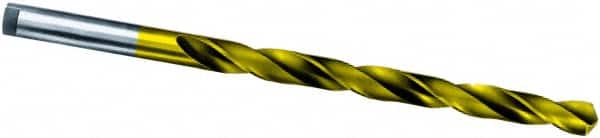

Extra Length Drill Bit: 0.067″ Dia, 118 °, High Speed Steel TiN Finish, Spiral Flute, Straight-Cylindrical Shank, Series 666
Item #: 58584384
Brand: Guhring
Model #: 9006660017000
Product Specifications
| Drill Bit Size (Wire) | #51 |
| Overall Length (mm) | 58.00 |
| Flute Length (mm) | 35.00 |
| Tool Material | High Speed Steel |
| Coating/Finish | TiN |
| Drill Point Angle | 118 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Spiral |
| Series | 666 |
| Point Type | N |
| Cutting Direction | Right Hand |
| Tool Application | Bushing |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | h8 |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | P; K; N |
| Standards | DIN 339 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size (Decimal Inch) | 0.0670 |
| Shank Diameter (mm) | 1.70 |
| Shank Length (mm) | 23.00 |
| Flute By Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 1.2780 |
| Maximum Drilling Depth (mm) | 32.45 |
