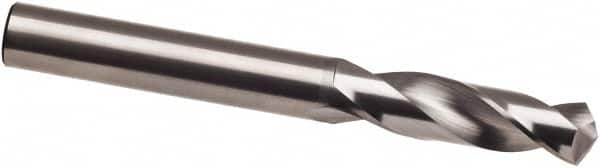

Screw Machine Length Drill Bit: 0.2768″ Dia, 135 °, Cobalt Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 610
Item #: 58593450
Brand: Guhring
Model #: 9006100070300
Product Specifications
| Drill Bit Size (Letter) | J |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 135 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Cone Relief |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2768 |
| Drill Bit Size (Decimal Inch) | 0.2768 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Shank Diameter (mm) | 7.03 |
| Series | 610 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.9240 |
| Maximum Drilling Depth (mm) | 23.46 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h8 |
| Standards | DIN 1897 |
| Flute Length (mm) | 34.00 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Specification Designation | DIN |
| Material Grade | M35 |
