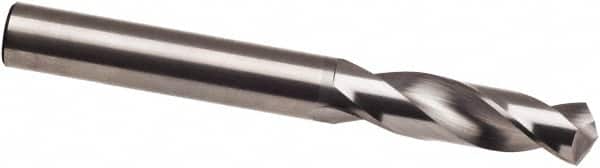

Screw Machine Length Drill Bit: 0.104″ Dia, 118 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 730
Item #: 58596933
Brand: Guhring
Model #: 9007300026400
Product Specifications
| Drill Bit Size (Wire) | #37 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1039 |
| Drill Bit Size (Decimal Inch) | 0.1040 |
| Overall Length (mm) | 43.00 |
| Overall Length (Decimal Inch) | 1.6929 |
| Shank Diameter (mm) | 2.64 |
| Series | 730 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.3950 |
| Maximum Drilling Depth (mm) | 10.04 |
| Shank Length (Decimal Inch) | 1.1417 |
| Shank Length (mm) | 29.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | h8 |
| Standards | DIN 6539 |
| Flute Length (mm) | 14.00 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Specification Designation | DIN |
| Material Grade | Micrograin |
