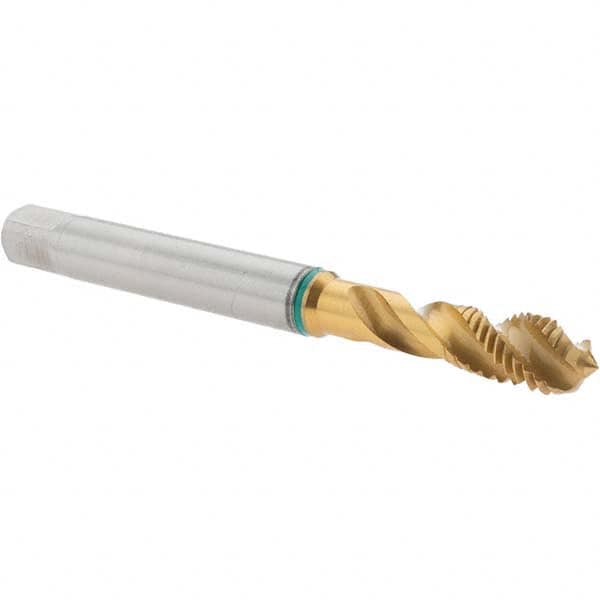

Guhring - M8x1.25 Metric, 3 Flute, 40° Helix, Modified Bottoming Chamfer, TiN Finish, Cobalt Spiral Flute STI Tap - Right Hand Flute, 100mm OAL, 6H (mod) Class of Fit, Series 1011
Item #: 58604026
Brand: Guhring
Model #: 9010110080000
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M8x1.25 |
| Class of Fit | 6H (mod) |
| Thread Limit | D4 |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Finish/Coating | TiN |
| Overall Length (mm) | 100.00 |
| Helix Angle | 40 |
| Thread Standard | Metric |
| Material | Cobalt |
| Flute Direction | Right Hand |
| Series/List | 1011 |
