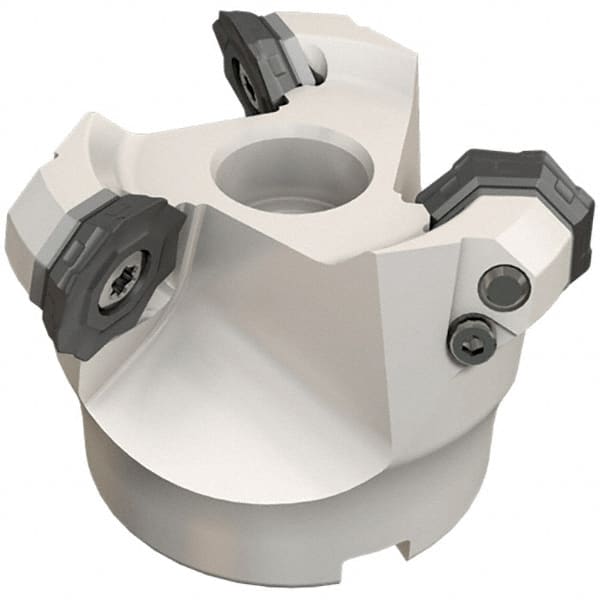

Iscar - 6.49" Cut Diam, 2" Arbor Hole, 0.18" Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 9 Inserts, OF..\xB6RFM. 1905 Insert, Right Hand Cut, 9 Flutes, Series Heliocto
Item #: 58629692
Brand: Iscar
Model #: 3181048
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 6.4900 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 42 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | OF..; RFM. 1905 |
| Series | Heliocto |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | HOF |
| Number of Flutes | 9 |
| Maximum Body Diameter (Decimal Inch) | 6.4900 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.1800 |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Complete Insert Compatibility | OFCR/OFCT-AEN/AETN; OFCT/OFCR-RW/AER (Wiper); OFMT 07; OFMW-AETN; OFMW-FF; RFMT 1905-76; RFMW 1905 |
