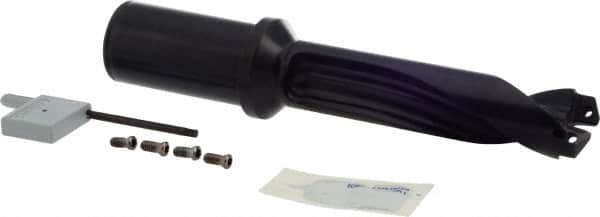

Allied Machine and Engineering - 26 to 28.57mm Diam, 3xD, 3-27/64" Max Depth, 1-1/4" Shank Diam, 7-11/32" OAL, Replaceable Tip Drill - Series 26
Item #: 58633579
Brand: Allied Machine and Engineering
Model #: 60326S-125F
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | 26 |
| Minimum Drill Diameter (mm) | 26.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.0236 |
| Maximum Drill Diameter (mm) | 28.57 |
| Maximum Drill Diameter (Decimal Inch) | 1.1248 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.4219 |
| Shank Diameter (Inch) | 1-1/4 |
| Through Coolant | NonThrough Coolant |
| Shank Type | Straight Shank |
| Proprietary Coating Designation | AM200 |
| Toolholder Coating | Proprietary |
| Overall Length (Inch) | 7-11/32 |
