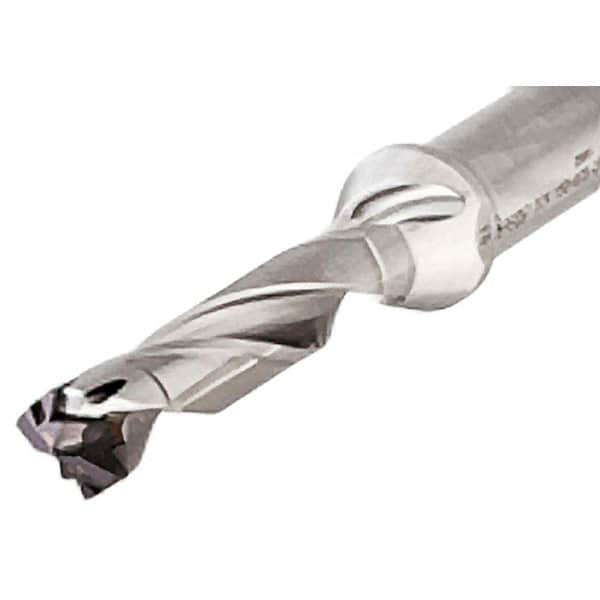

Iscar - 0.945" to 0.98" Diam, 3xD, 2.83" Max Depth, 1-1/4" Shank Diam, 6.69" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 24 Seat Size, 58682188 Toolholder, Series SumoCham
Item #: 58682188
Brand: Iscar
Model #: 3202819
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.9450 |
| Maximum Drill Diameter (Decimal Inch) | 0.9800 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.8300 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 24 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 4.3300 |
| Overall Length (Decimal Inch) | 6.6900 |
| Shank Length (Decimal Inch) | 2.3600 |
