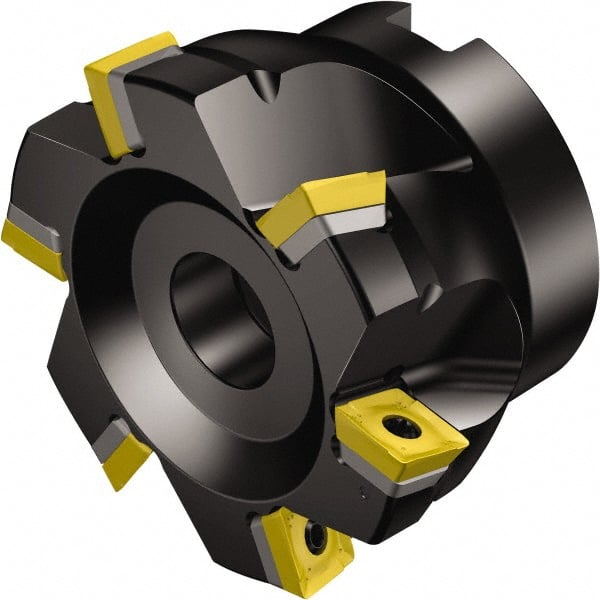

Sandvik Coromant - 6 Inserts, 3" Cut Diam, 1" Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 490R-1404 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 58683293
Brand: Sandvik Coromant
Model #: 5844011
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 90 |
| Insert Compatibility | 490R-1404 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | A490..Rxx |
| Number of Flutes | 6 |
| Maximum RPM | 10400 |
| ISO Number | A490-076R25-14M |
| Toolholder Material | Steel |
