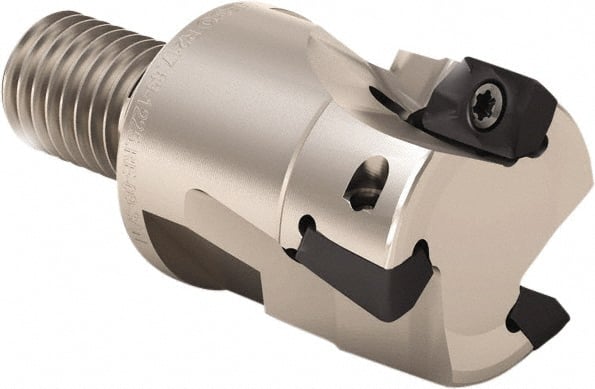

Seco - 1-1/4" Cut Diam, 0.669" Max Depth of Cut, 1.77" OAL, Indexable Square Shoulder End Mill - XO.. 1806 Inserts, M16 Modular Connection, 90° Lead Angle, Through Coolant, Series Power Turbo
Item #: 58724204
Brand: Seco
Model #: 55602
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (Decimal Inch) | 1.7700 |
| Lead Angle | 90 |
| Series | Power Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Weldon Flat | No |
| Insert Compatibility | XO.. 1806 |
| Maximum RPM | 11100 |
