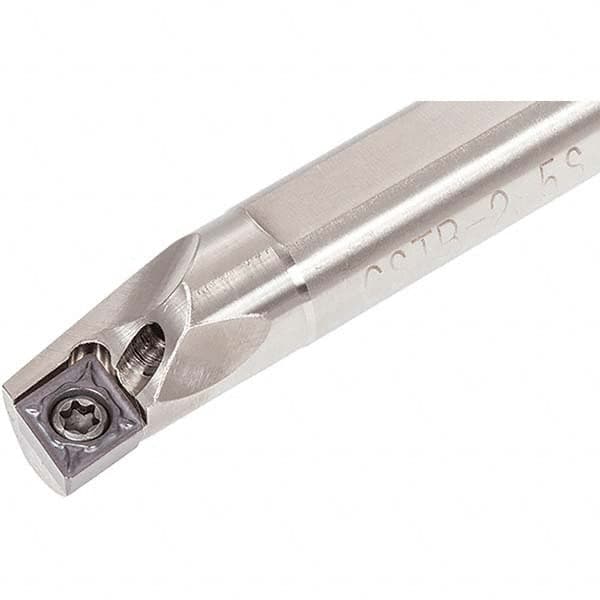

Indexable Boring Bar
Item #: 58735622
Brand: Tungaloy
Model #: 6862396
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
| Minimum Bore Diameter (Inch) | 1 |
| Maximum Bore Depth (Decimal Inch) | 1.4380 |
| Toolholder Style | SCLCL; SCLCR |
| Tool Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (Inch) | 7 |
| Compatible Insert Size Code | 32.5 |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Rake | Neutral (Axial); Negative (Radial) |
| Cutting Direction | Right Hand |
| Lead Angle | 95.00 |
| Series | StreamJetBar |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1560 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning |
| Center to Cutting Edge (Decimal Inch) | 0.5940 |
| Coolant Through | Yes |
