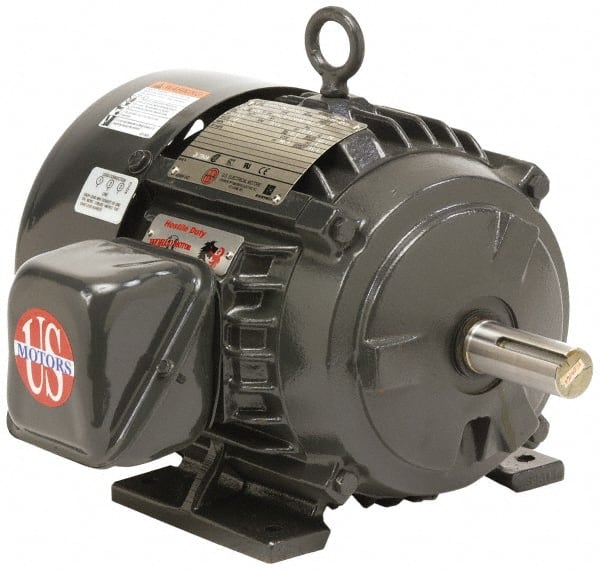

US Motors - 10 hp, TEFC Enclosure, No Thermal Protection, 3,510 RPM, 208-230/460 Volt, 60/50 Hz, Three Phase Energy Efficient Motor - Size 215T Frame, Rigid Mount, 1 Speed, Ball Bearings, 26.7-23.8/11.9 Full Load Amps, F Class Insulation, Reversible
Item #: 58755547
Brand: US Motors
Model #: H10E1D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 10 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3510 |
| Voltage | 208-230/460 |
| Frequency Hz | 60/50 |
| Frame Size | 215T |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 26.7-23.8/11.9 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 19.0600 |
| Shaft Diameter x Length (Inch) | 1-3/8 x 3-3/8 |
| Full Load Efficiency Rating | 89.50 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
