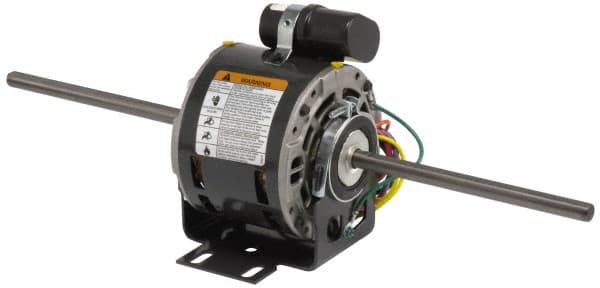

US Motors - 1/6 hp, OPAO Enclosure, Auto Thermal Protection, 1,075 RPM, 115 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 48YZ Frame, Stud Mount, 3 Speed, Sleeve Bearings, 2.9 Full Load Amps, A Class Insulation, CCW Lead End
Item #: 58756255
Brand: US Motors
Model #: 1240
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | OPAO |
| Horsepower | 1/6 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48YZ |
| Mount Type | Stud |
| Number of Speeds | 3 |
| Bearing Type | Sleeve |
| Applications | HVAC |
| Full Load Amperage | 2.9 |
| Insulation Class | A |
| Overall Length (Decimal Inch) | 18.6900 |
| Shaft Diameter x Length (Inch) | 1/2 x 7 |
| Full Load Efficiency Rating | 48.40 |
| Motor Run Capacitor Micro Farid | 5 |
| Motor Run Capacitor Volts | 370 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
