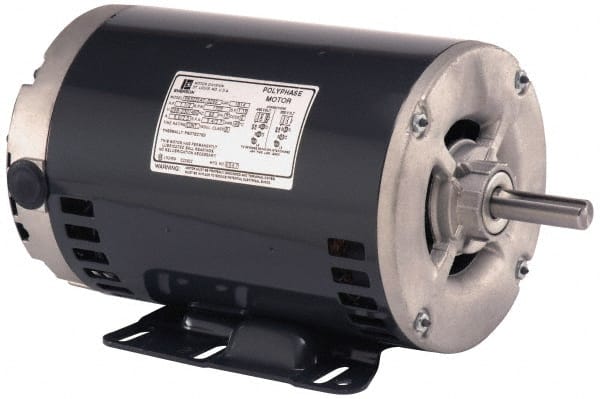

US Motors - 1.5 hp, OPAO Enclosure, Auto Thermal Protection, 1,725 RPM, 208-230/460 Volt, 60/50 Hz, Three Phase Standard Efficient Motor - Size 56HZ Frame, Rigid Mount, 1 Speed, Ball Bearings, 5.0/2.5/5.2/2.6 Full Load Amps, B Class Insulation, Reversible
Item #: 58756354
Brand: US Motors
Model #: 1814
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | OPAO |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1725 |
| Voltage | 208-230/460 |
| Frequency Hz | 60/50 |
| Frame Size | 56HZ |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | HVAC |
| Full Load Amperage | 5.0/2.5/5.2/2.6 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 12.4000 |
| Shaft Diameter x Length (Inch) | 5/8 x 1-7/8 |
| Full Load Efficiency Rating | 85.00 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
