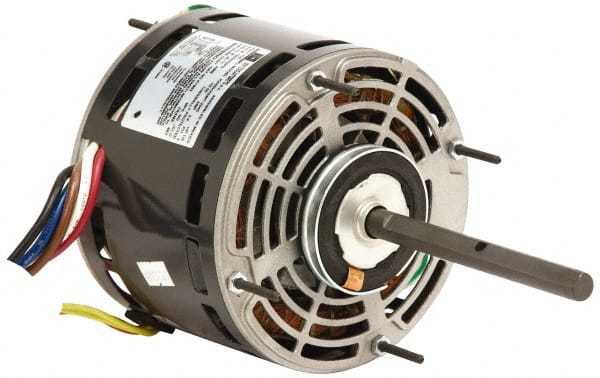

US Motors - 1 hp, OPAO Enclosure, Auto Thermal Protection, 1,100 RPM, 208-230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 48Y Frame, Band Mount, 4 Speed, Sleeve Bearings, 6.0 Full Load Amps, B Class Insulation, CCW Lead End
Item #: 58756586
Brand: US Motors
Model #: 4670
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | OPAO |
| Horsepower | 1 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1100 |
| Voltage | 208-230 |
| Frequency Hz | 60 |
| Frame Size | 48Y |
| Mount Type | Band |
| Number of Speeds | 4 |
| Bearing Type | Sleeve |
| Applications | HVAC |
| Full Load Amperage | 6.0 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 11.3000 |
| Shaft Diameter x Length (Inch) | 5/8 x 5 |
| Full Load Efficiency Rating | 71.70 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
