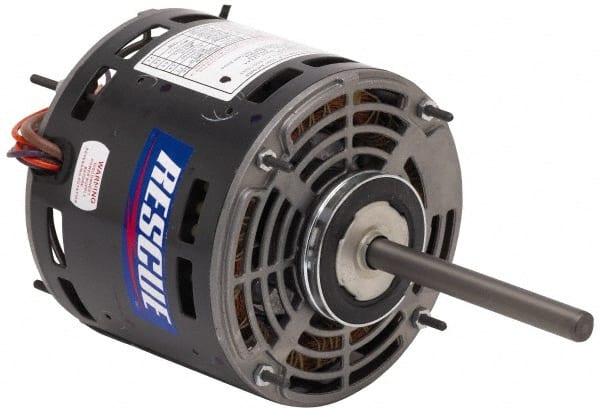

US Motors - 1/2 hp, OPAO Enclosure, Auto Thermal Protection, 1,075 RPM, 115 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 48Y Frame, Ring/Stud Mount, 4 Speed, Sleeve Bearings, 7.3 Full Load Amps, B Class Insulation, Reversible
Item #: 58756594
Brand: US Motors
Model #: 5460
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | OPAO |
| Horsepower | 1/2 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48Y |
| Mount Type | Ring/Stud |
| Number of Speeds | 4 |
| Bearing Type | Sleeve |
| Applications | HVAC |
| Full Load Amperage | 7.3 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 4.8000 |
| Shaft Diameter x Length (Inch) | 1/2 x 4-1/2 |
| Full Load Efficiency Rating | 64.50 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
