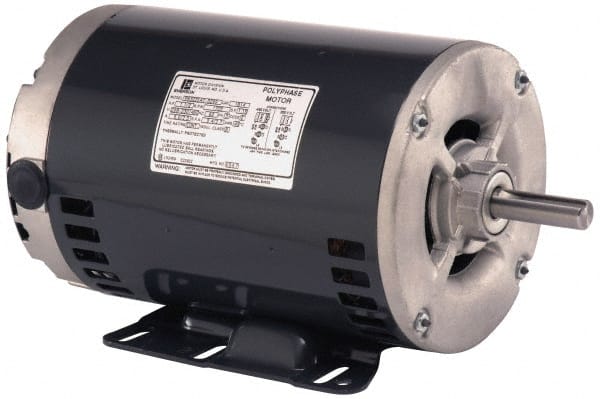

US Motors - 1.5 hp, ODP Enclosure, Auto Thermal Protection, 1,725 RPM, 200-230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 56HZ Frame, Hub/Stud Mount, 1 Speed, Ball Bearings, 5.0/2.5 Full Load Amps, B Class Insulation, Reversible
Item #: 58756636
Brand: US Motors
Model #: 7913
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | ODP |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1725 |
| Voltage | 200-230/460 |
| Frequency Hz | 60 |
| Frame Size | 56HZ |
| Mount Type | Hub/Stud |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | HVAC |
| Full Load Amperage | 5.0/2.5 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 12.3000 |
| Shaft Diameter x Length (Inch) | 7/8 x 2-1/4 |
| Full Load Efficiency Rating | 84.60 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
