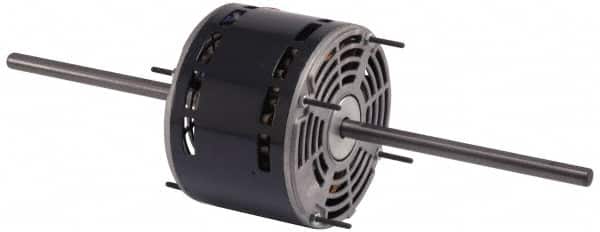

US Motors - 1/3 hp, OPAO Enclosure, Auto Thermal Protection, 1,625 RPM, 230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 48YZ Frame, Stud Mount, 3 Speed, Sleeve Bearings, 1.9 Full Load Amps, B Class Insulation, CCW Lead End
Item #: 58756727
Brand: US Motors
Model #: 8726
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | OPAO |
| Horsepower | 1/3 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1625 |
| Voltage | 230 |
| Frequency Hz | 60 |
| Frame Size | 48YZ |
| Mount Type | Stud |
| Number of Speeds | 3 |
| Bearing Type | Sleeve |
| Applications | HVAC |
| Full Load Amperage | 1.9 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 18.3000 |
| Shaft Diameter x Length (Inch) | 1/2 x 7 |
| Full Load Efficiency Rating | 72.10 |
| Motor Run Capacitor Micro Farid | 7.5 |
| Motor Run Capacitor Volts | 370 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
