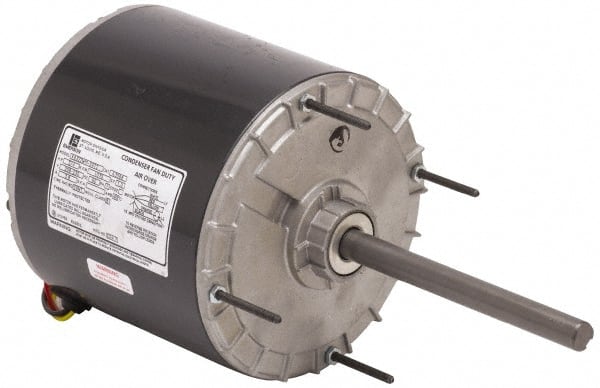

US Motors - 1 hp, OAO Enclosure, Auto Thermal Protection, 1,075 RPM, 208-230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 56Z Frame, Stud/Band Mount, 1 Speed, Ball Bearings, 5.2 Full Load Amps, B Class Insulation, Reversible
Item #: 58757089
Brand: US Motors
Model #: 3565
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | OAO |
| Horsepower | 1 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 208-230 |
| Frequency Hz | 60 |
| Frame Size | 56Z |
| Mount Type | Stud/Band |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | HVAC |
| Full Load Amperage | 5.2 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 13.9000 |
| Shaft Diameter x Length (Inch) | 5/8 x 6 |
| Full Load Efficiency Rating | 67.40 |
| Motor Run Capacitor Micro Farid | 17.5 |
| Motor Run Capacitor Volts | 370 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
