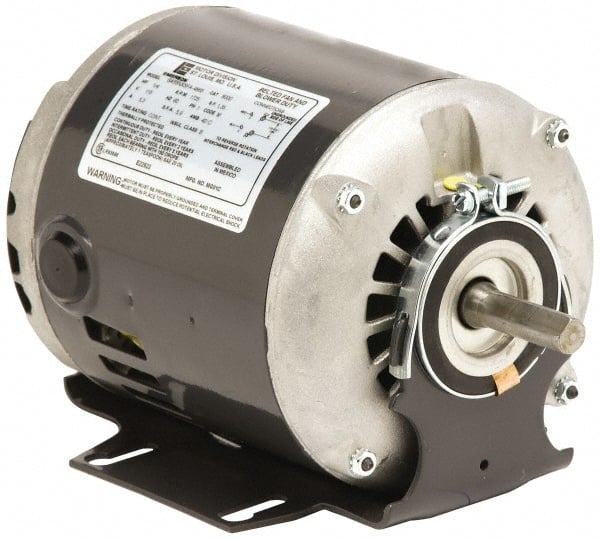

US Motors - 1/3 hp, ODP Enclosure, Auto Thermal Protection, 1,725 RPM, 115 Volt, 60 Hz, Single Phase Split Phase Motor - Size 48 Frame, Cradle Mount, 1 Speed, Sleeve Bearings, 6.4 Full Load Amps, B Class Insulation, Reversible
Item #: 58757204
Brand: US Motors
Model #: 8100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Split Phase |
| Type of Enclosure | ODP |
| Horsepower | 1/3 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1725 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Cradle |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Applications | HVAC |
| Full Load Amperage | 6.4 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 9.4000 |
| Shaft Diameter x Length (Inch) | 1/2 x 1-1/2 |
| Full Load Efficiency Rating | 56.60 |
| Service Factor Rating | 1.35 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
