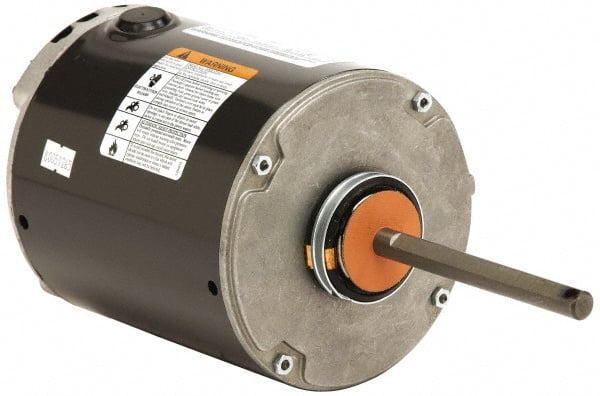

US Motors - 1 hp, OAO Enclosure, Auto Thermal Protection, 1,140 RPM, 200/230/460 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor
Item #: 58757402
Brand: US Motors
Model #: 1326
Product Specifications
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | OAO |
| Horsepower | 1 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1140 |
| Voltage | 200/230/460 |
| Frequency Hz | 60 |
| Frame Size | 48Y |
| Mount Type | Band/Hub |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | HVAC |
| Full Load Amperage | 3.5-3.3/1.7 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 14.5000 |
| Shaft Diameter x Length | 1/2 x 5 |
| Full Load Efficiency Rating | 75.60 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
