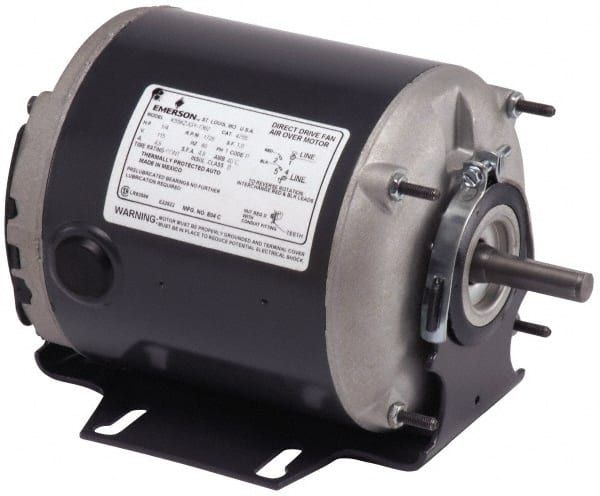

US Motors - 1/6 hp, TEAO Enclosure, Auto Thermal Protection, 1,140 RPM, 115 Volt, 60 Hz, Single Phase Split Phase Motor - Size 56Z Frame, Cradle/Stud Mount, 1 Speed, Sleeve Bearings, 4.60 Full Load Amps, B Class Insulation, Reversible
Item #: 58757485
Brand: US Motors
Model #: 4752
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Split Phase |
| Type of Enclosure | TEAO |
| Horsepower | 1/6 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1140 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 56Z |
| Mount Type | Cradle/Stud |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Applications | HVAC |
| Full Load Amperage | 4.60 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 8.9200 |
| Shaft Diameter x Length (Inch) | 1/2 x 1-1/2 |
| Full Load Efficiency Rating | 52.80 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
