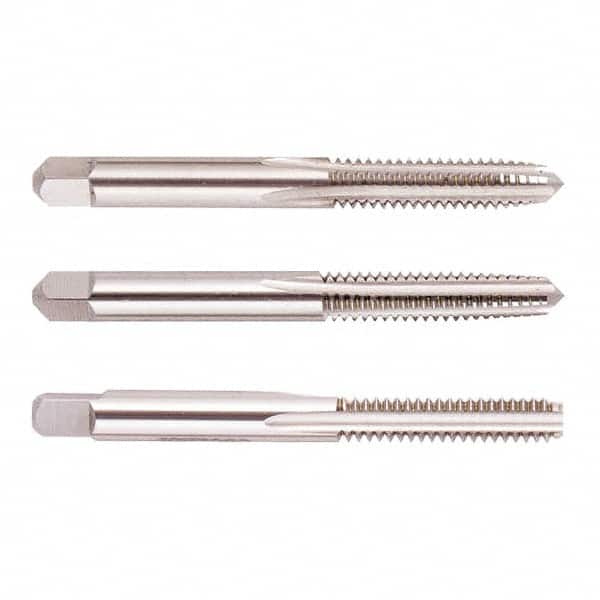

Regal Cutting Tools - #1-72 UNF, 2 Flute, Bottoming, Plug & Taper, Uncoated, Uncoated Finish, High Speed Steel Tap Set - 1-11/16" OAL, 3/8" Thread Length, 3B Class of Fit
Item #: 58870650
Brand: Regal Cutting Tools
Model #: 008902AS
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size | #1-72 |
| Number of Flutes | 2 |
| Chamfer | Bottoming; Plug; Taper |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Class of Fit | 3B |
| Thread Limit | H1 |
| Thread Length (Decimal Inch) | 0.3750 |
| Thread Length (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 1.6875 |
| Overall Length (Inch) | 1-11/16 |
| Thread Standard | UNF |
| Number of Pieces | 3 |
