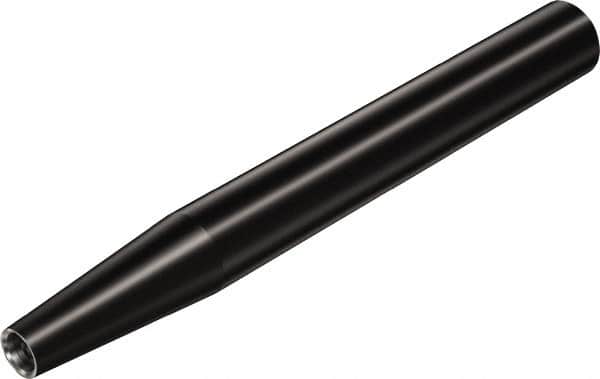

Sandvik Coromant - CoroMill 316 3/4" Straight Shank Milling Tip Insert Holder & Shank - 7-1/2" Projection, 0.663" Neck Diam, 0.6063" Nose Diam, 7" OAL, Steel AExx-Axx..CS Tool Holder
Item #: 59040162
Brand: Sandvik Coromant
Model #: 5721517
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Projection (Inch) | 7-1/2 |
| Projection (Decimal Inch) | 7.5000 |
| Neck Diameter (Decimal Inch) | 0.6063 |
| Nose Diameter (Decimal Inch) | 0.6063 |
| Toolholder Material | Steel |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.5000 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 3.0000 |
| Maximum Diameter (Decimal Inch) | 0.6063 |
| Shank Material | Steel |
| Toolholder Style | AExx-Axx..CS |
