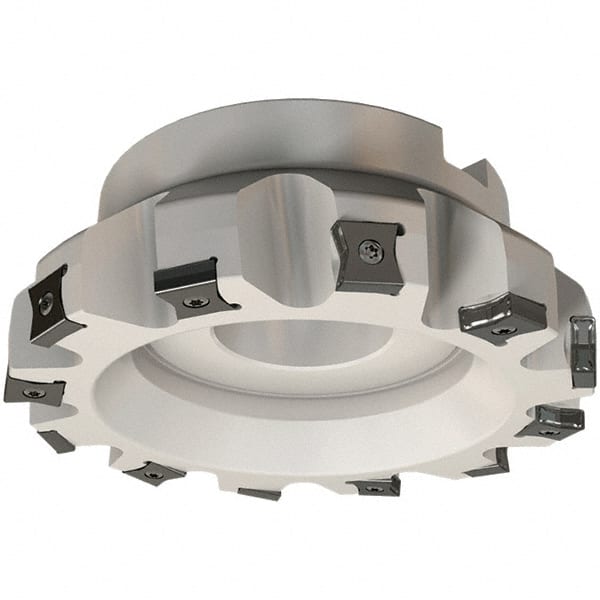

Iscar - 4" Cut Diam, 1-1/2" Arbor Hole, 0.118" Max Depth of Cut, 86° Indexable Chamfer & Angle Face Mill - 10 Inserts, LN.. 1506.. Insert, Right Hand Cut, 10 Flutes, Series TangMill
Item #: 59051250
Brand: Iscar
Model #: 3104413
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 86 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | LN.. 1506.. |
| Series | TangMill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | F86LNX-15 |
| Number of Flutes | 10 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Complete Insert Compatibility | LNAT 1506-W; LNHW 1506 PNTN (Ceramic); LNKX 1506PN-N PL; LNKX/LNMT 1506PNTN/PN-N MM; LNMW 1506 PNTN |
